Product Description

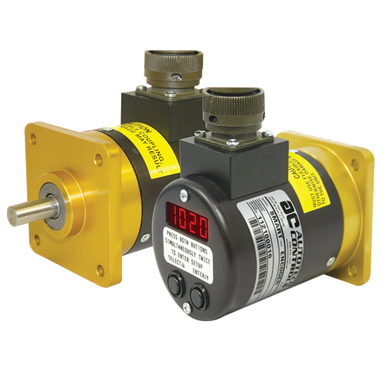

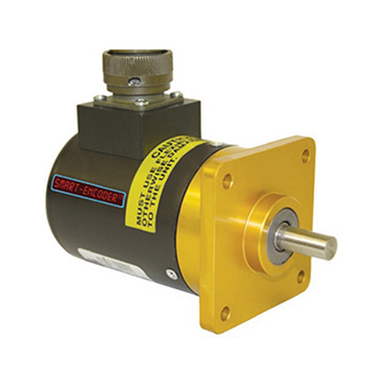

2.5″, Flange mount, NEMA 4, Class I DIV II, double bearing with shaft seal, 80 lb shaft load, Optical Incremental, Programmable from 1 to 4096 count, 8-30V power, Open collector outputs with 2.2K?, Side connector, 10-pin Differential Quadrature Incremental Encoder with Index and complimentary outputs, M18 connector, Standard Aluminum case
Specifications
- Weight: 2 lb
